SM-004
CE TUV ISO
- 30W-80W For smaller size body LED street light.
- 100-150W For MID sizer body LED street light.
- 180-300W For BIG size body LED street light.

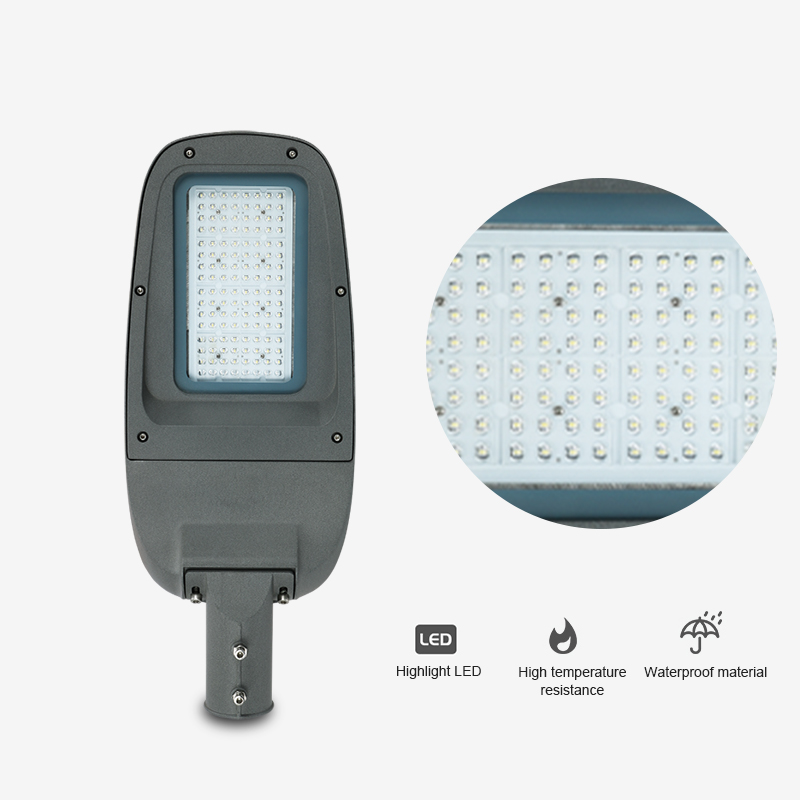

- CREE XTE/5050/PHILIP 3030 and Meanwell driver.

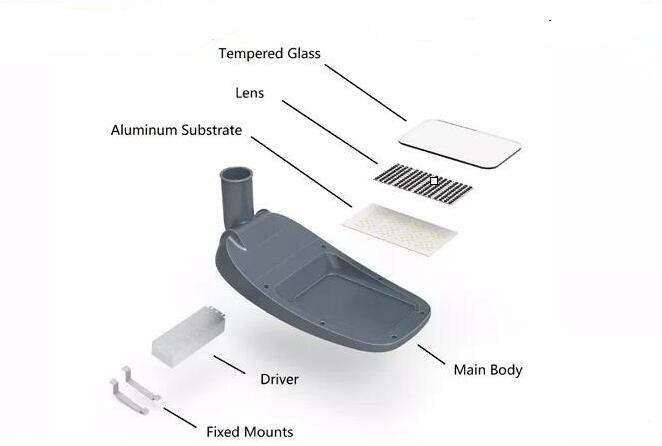

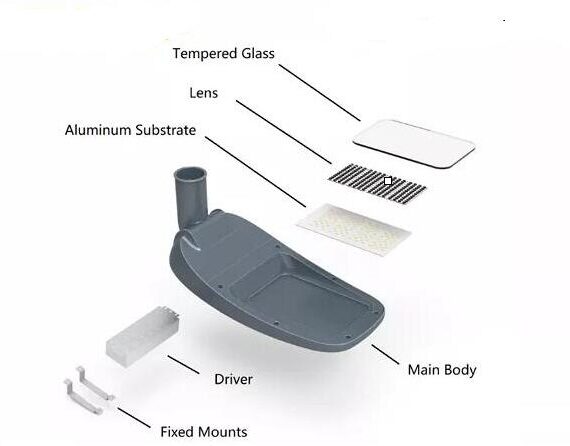

- High intensity die-cast Aluminium body.
- High transparent temper glass reach to 95%.

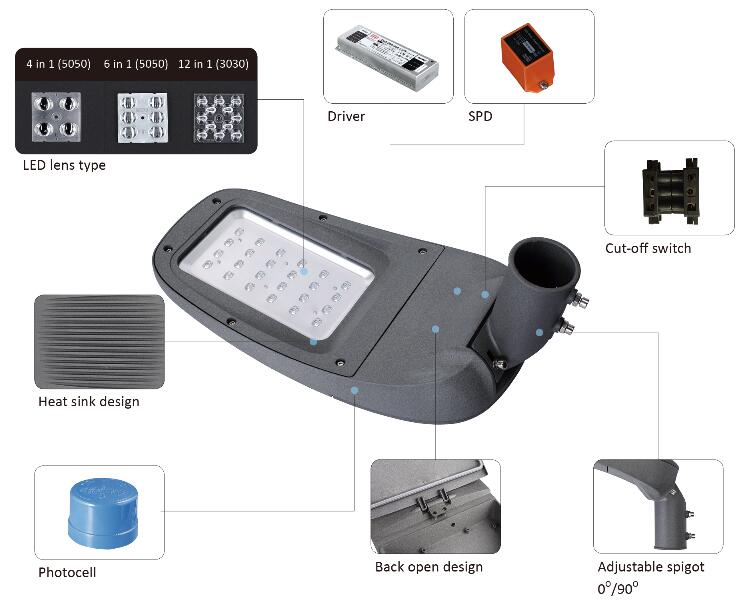

- Modular optical lens design. Easy improve optical in future.
-
FREE Tool- opening and maintaining.
- IK09
- Protection grade: IP66, Electrical protection Class I And Classic II
- Auto Switch,Surge protector and photocell for choice

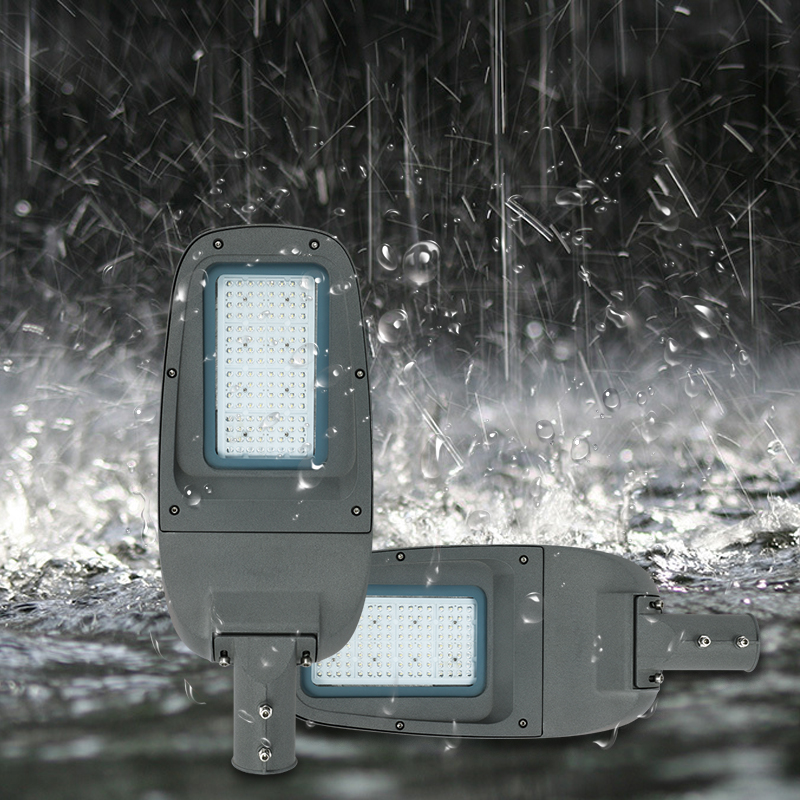

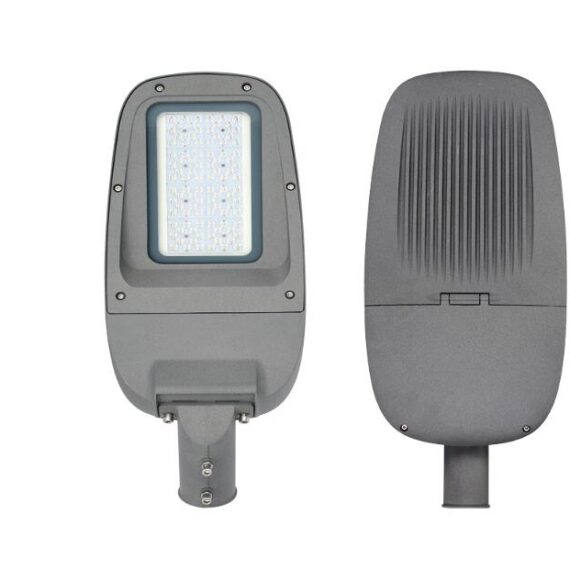

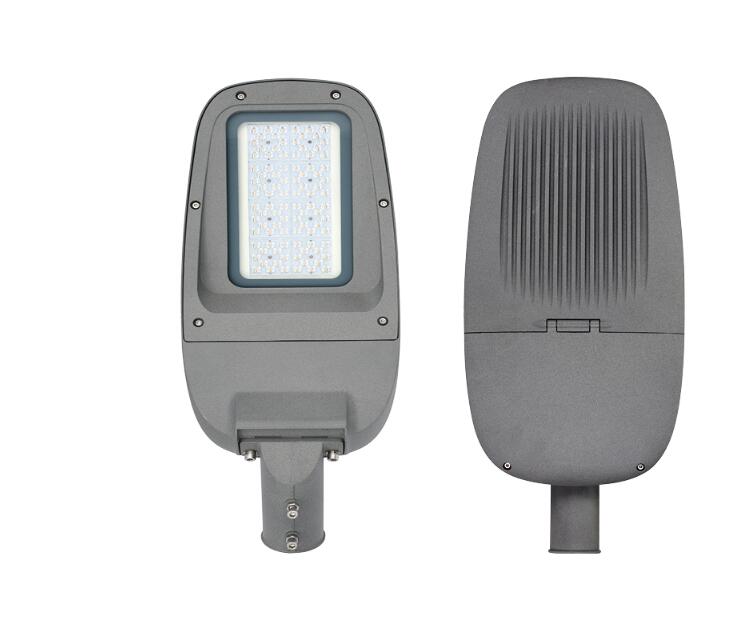

STREET LIGHT SM-004
WE have 30w 60w 80w 100w 120w 150w 200w 240w 300w for this model
Die-cast empty is welcome
- LED STREET LIGHT PAL DETAILS
Product Code
30 60 80 150 250 Electric Current (mA) 525mA 525mA 525mA 525mA 525mA LED Quantity CREE/PHILIP CREE/PHILIP CREE/PHILIP CREE/PHILIP CREE/PHILIP Rate Power 30W 40W 60W 150W 250W Color Temperature 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K 6500/4000/3000K Luminous Flux 140LUM/W 140LUM/W 140LUM/W 140LUM/W 140LUM/W Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V AC100-277V Frequency Range 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz Color Temperature RA75 RA75 RA75 RA75 RA75 Temperature of working condition -40℃ – 65℃ -40℃ – 65℃ -40℃ – 65℃ -40℃ – 65℃ -40℃ – 65℃ humidity of working condition 20%-90% 20%-90% 20%-90% 20%-90% 20%-90% LED life time 70000h 70000h 70000h 70000h 70000h Protestion Grade IP66 IP66 IP66 IP66 IP66 Installation Pipe Dia Φ60mm/ Φ48mm Φ60mm/ Φ48mm Φ60mm/ Φ48mm Φ60mm/ Φ48mm Φ60mm/ Φ48mm
| DRIVER | MEANWELL |
|---|---|
| CHIPS | CREE-XTE PHILIP 3030 |
