SM-013

CE  TUV ISO

  • 30W-60W For smaller size body LED street light.
  • 80-100W For MID  sizer body LED street light.
  • 120-150W For BIG  size  body LED street light.
  • CREE XTE/5050/PHILIP 3030 and Meanwell driver.
  • High intensity die-cast Aluminium body.
  • High transparent temper glass reach to 95%.
  • Modular optical lens design. Easy improve optical in future.
  • FREE Tool- opening and maintaining.

  • IK09
  • Protection grade: IP66, Electrical protection Class I And Classic II
  • Auto Switch,Surge protector and photocell for choice

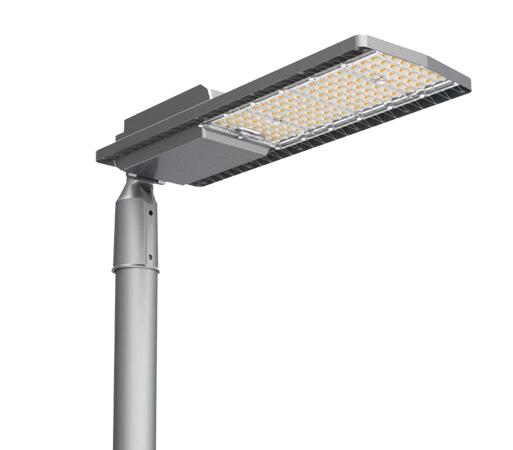

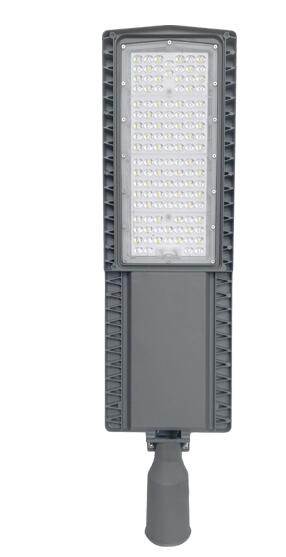

STREET LIGHT      SM-013

WE have 30w 60w 80w 100w 120w 150w 200w  for this model

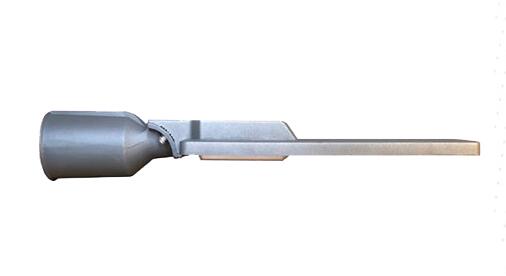

Die-cast empty Can support

  • Products Advantage:-Smooth appearance and line design-Up to 100,000hrs @ L70 low maintenance cost-It can be installed horizontally and vertically, and the adjustable angle is ±15°-The protection grade is IP66 and IK09-Tool-less opening of the driver box, ease of maintenance-ADC12 high-pressure cast aluminium one-piece shell great help for heat dissipation

    -High strength tempered glass lampshade with stronger light transmission performance

    -The hollow design is adopted between the light source and the electric box to improve the airflow rate and heat dissipation capacity

    -Type I/II/III/IV/ light distribution can meet the different requirements of road lighting

    -Strobo-free stable optical output, power factor 0.95 Maintain the stability of the power grid

    -LED: Epistar/LUMI LEDS 3030 Super Brighter LED, up to 130/150/170lm/w for lamps

    -Meanwell driver choice: High efficiency and power factor, PF>0.95

    -Common input voltage 100-35V AC, special 12V/24V DC/AC Customized

  • 01
DRIVER

MEANWELL

CHIPS

CREE-XTE PHILIP 3030
